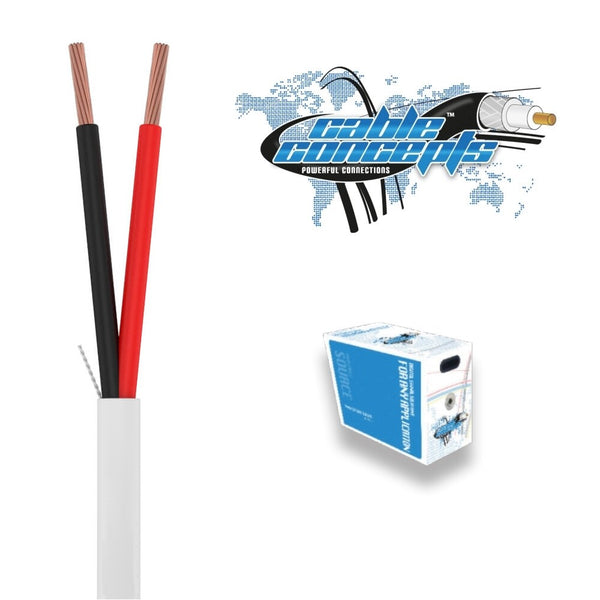

1) Description
18 Gauge, 4 Conductor solid bare copper, 0.010
Non plenum insulation, Overall 0.015 Jacket, UL & CSA
2) Physical Dimensions
Center Conductor:------------------1.02+0.01mm BC
Insulation:-----------------------------1.53+0.02mm PVC
Thickness:-----------------------------0.255mm
Color Code:---------------------------Black & Red
Jacket:---------------------------------3.96+0.05mm PVC
Thickness:----------------------------0.45mm
3) Mechanical Characteristics
Operating Temperature Range:-----20 To +75
Installation Temperature Range:--- 0 To +60
Capacitance:-----------------------------26 pF/ft
DCR:---------------------------------------6.385 phms/1000ft @ 68°F
