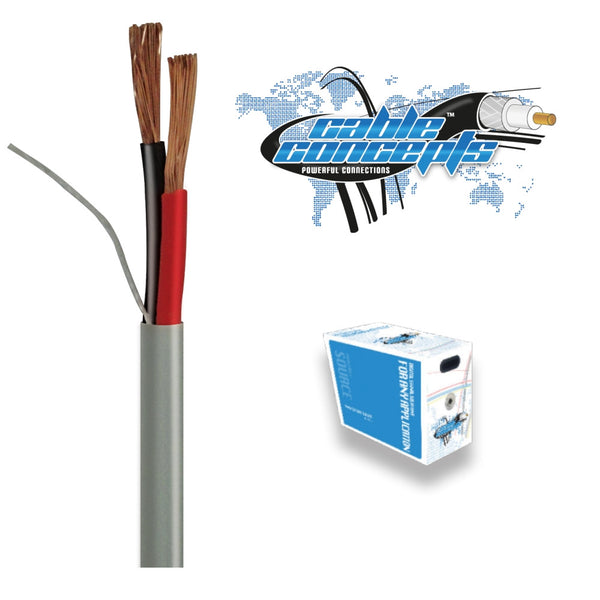

14 gauge (65X0.33mm) 2 strand bare copper conductor; PVC insulation, ripcord
PVC jacket.
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call.
1) Physical Dimensions
Center Conductor:-----------65X0.33+0.01mm Strand Bare Copper
Insulation:---------------------2.0+0.02mm PVC
Insulation Thickness:-------0.33mm
Ripcord:------------------------YES
Jacket:-------------------------5.0+0.03mm PVC
Jacket Thickness:-----------0.38mm
2) Mechanical Specification
Operating Temperature Range:-------------------20 To +75
Cable Weight:------------------------------------------37.50 Lbs/Mft
Min. Bend Radius:------------------------------------2.2 in.
3) Electrical Characteristics
Operating Voltage:------------------------------300 VRMS
Max. Conductor DCR:--------------------------2.62/Mft
Capacitance:-------------------------------------32 pF/ft
4) Approval:
NEC/(UL), CSA, FT4, CMG, CEC/C(UL)
